云原生

单机部署Harbor，并在k8s中配置使用

zhanjie.me
zhanjie.me
2022-06-14 / 0 评论 / 0 点赞 / 6 阅读 / 0 字

一、容器镜像仓库Harbor部署

1.1 在docker主机部署harbor

1.1.1 docker-ce安装

使用阿里云开源软件镜像站。

# step 1: 安装必要的一些系统工具
sudo yum install -y yum-utils device-mapper-persistent-data lvm2
# Step 2: 添加软件源信息
sudo yum-config-manager --add-repo https://mirrors.aliyun.com/docker-ce/linux/centos/docker-ce.repo
# Step 3
sudo sed -i 's+download.docker.com+mirrors.aliyun.com/docker-ce+' /etc/yum.repos.d/docker-ce.repo
# Step 4: 更新并安装Docker-CE
sudo yum makecache fast
sudo yum -y install docker-ce
# Step 4: 开启Docker服务
sudo systemctl start docker

# 注意：
# 官方软件源默认启用了最新的软件，您可以通过编辑软件源的方式获取各个版本的软件包。例如官方并没有将测试版本的软件源置为可用，您可以通过以下方式开启。同理可以开启各种测试版本等。
# vim /etc/yum.repos.d/docker-ce.repo
#   将[docker-ce-test]下方的enabled=0修改为enabled=1
#
# 安装指定版本的Docker-CE:
# Step 1: 查找Docker-CE的版本:
# yum list docker-ce.x86_64 --showduplicates | sort -r
#   Loading mirror speeds from cached hostfile
#   Loaded plugins: branch, fastestmirror, langpacks
#   docker-ce.x86_64            17.03.1.ce-1.el7.centos            docker-ce-stable
#   docker-ce.x86_64            17.03.1.ce-1.el7.centos            @docker-ce-stable
#   docker-ce.x86_64            17.03.0.ce-1.el7.centos            docker-ce-stable
#   Available Packages
# Step2: 安装指定版本的Docker-CE: (VERSION例如上面的17.03.0.ce.1-1.el7.centos)
# sudo yum -y install docker-ce-[VERSION]

1.1.2 docker compose安装

  • 下载最新版本：
    sudo curl -L "https://github.com/docker/compose/releases/latest/download/docker-compose-$(uname -s)-$(uname -m)" -o /usr/local/bin/docker-compose
  • 赋予可执行权限给下载的二进制文件：
    sudo chmod +x /usr/local/bin/docker-compose
  • 验证安装是否成功。运行以下命令，查看Docker Compose版本信息：
    docker-compose --version

1.1.3 获取harbor安装文件

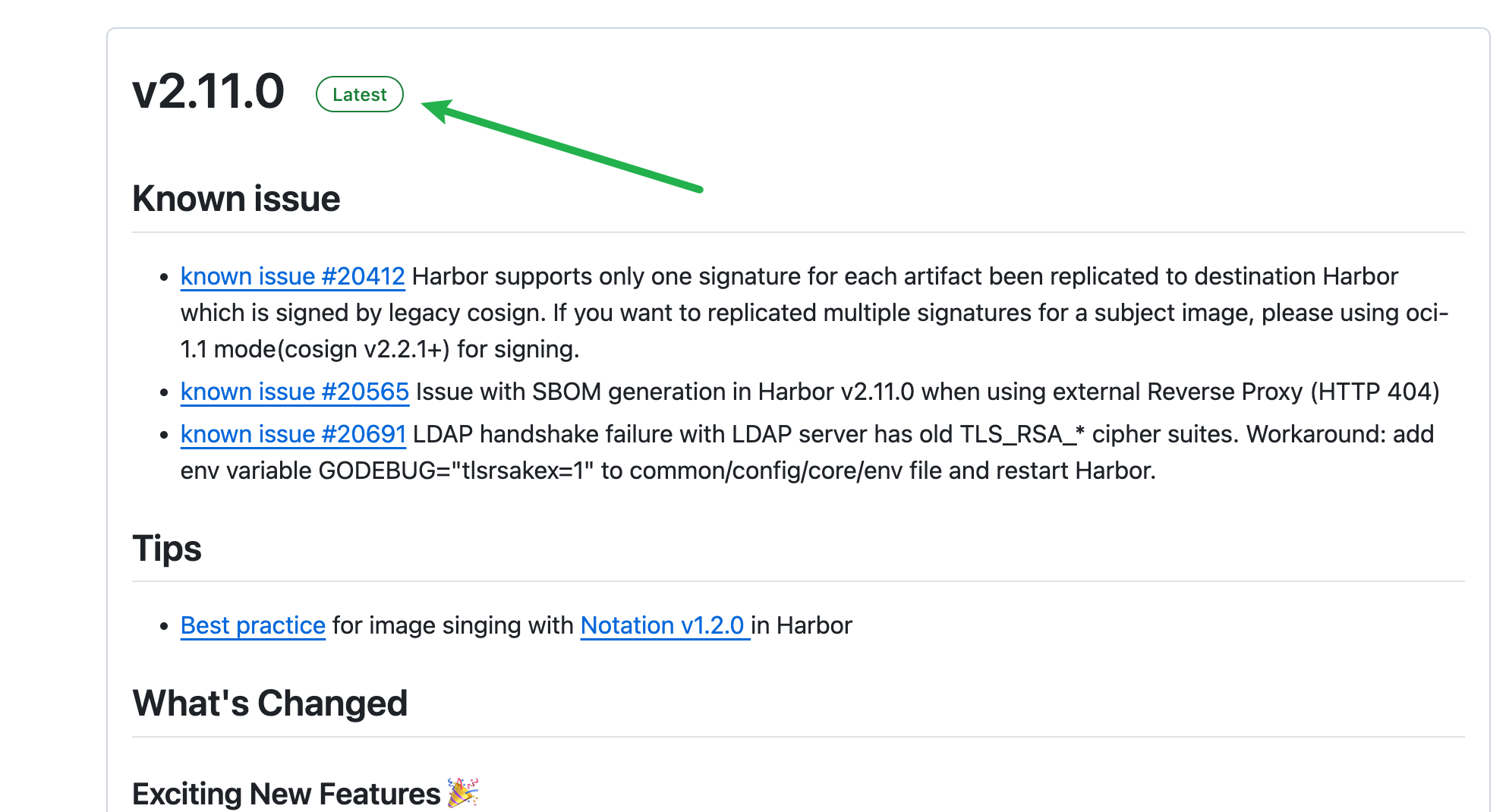

  • 前往 harbor 的github仓库下载安装文件 https://github.com/goharbor/harbor/releases，下载最新稳定版

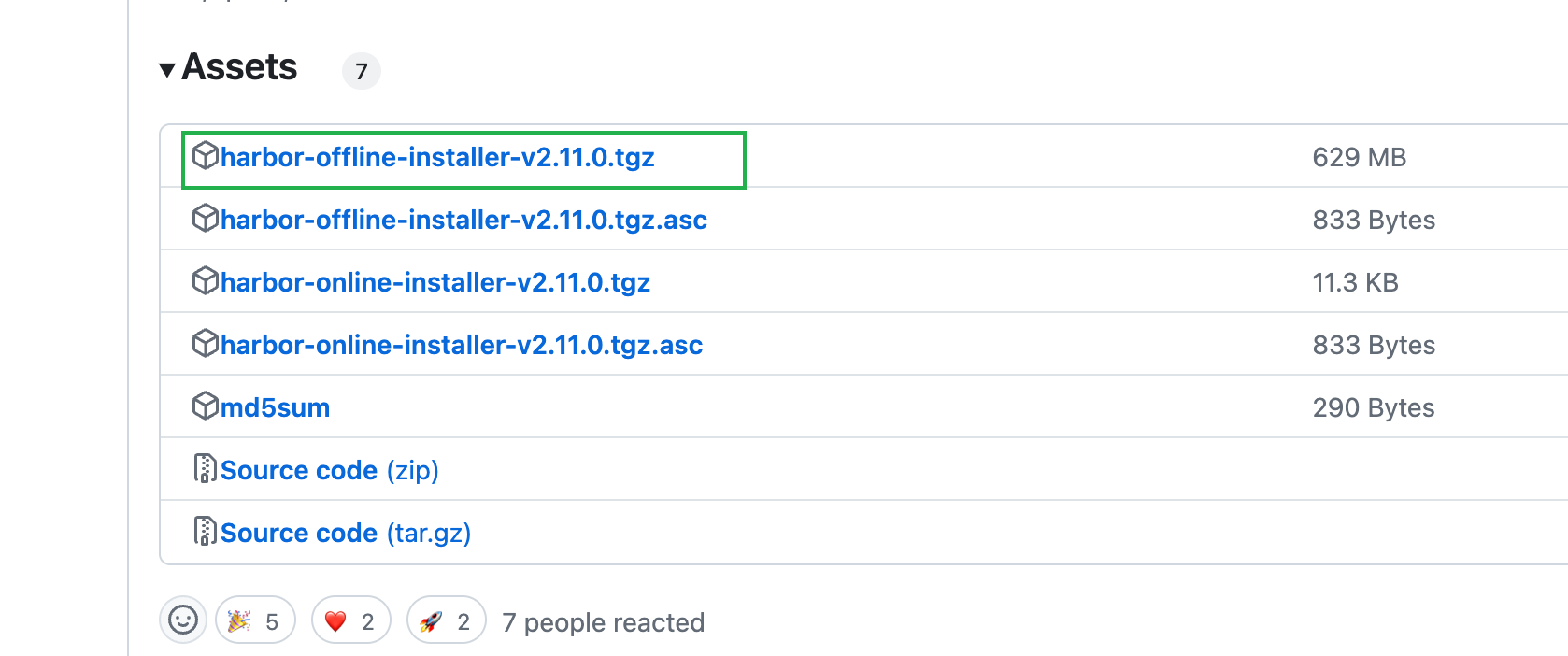

  • 选择离线安装包
  • 下载harbor离线安装包
$ wget https://github.com/goharbor/harbor/releases/download/v2.11.0/harbor-offline-installer-v2.11.0.tgz
$ ls
harbor-offline-installer-v2.11.0.tgz

1.1.4 修改配置文件

  • 解压harbor离线安装包
$ tar zxf harbor-offline-installer-v2.11.0.tgz
$ ls
$ ls harbor
common.sh  harbor.v2.11.0.tar.gz  harbor.yml.tmpl  install.sh  LICENSE  prepare
  • 由模板创建配置文件并修改
$ cd harbor/
$ cp harbor.yml.tmpl harbor.yml
$ vim harbor.yml
# Configuration file of Harbor

# The IP address or hostname to access admin UI and registry service.
# DO NOT use localhost or 127.0.0.1, because Harbor needs to be accessed by external clients.
hostname: hub.17ker.top

# http related config
http:
  # port for http, default is 80. If https enabled, this port will redirect to https port
  port: 80

# https related config
https:
  # https port for harbor, default is 443
  port: 443
  # The path of cert and key files for nginx
  certificate: /opt/harbor/ssl/star.17ker.top.crt
  private_key: /opt/harbor/ssl/star.17ker.top.key
  # enable strong ssl ciphers (default: false)
  # strong_ssl_ciphers: false
...
# The initial password of Harbor admin
# It only works in first time to install harbor
# Remember Change the admin password from UI after launching Harbor.
harbor_admin_password: Harbor12345 #访问密码
...

1.1.5 执行预备脚本

$ sudo ./prepare
prepare base dir is set to /opt/harbor
Unable to find image 'goharbor/prepare:v2.11.0' locally  #本地没有，需下载镜像
v2.11.0: Pulling from goharbor/prepare
Generated configuration file: /config/portal/nginx.conf
Generated configuration file: /config/log/logrotate.conf
Generated configuration file: /config/log/rsyslog_docker.conf
Generated configuration file: /config/nginx/nginx.conf
Generated configuration file: /config/core/env
Generated configuration file: /config/core/app.conf
Generated configuration file: /config/registry/config.yml
Generated configuration file: /config/registryctl/env
Generated configuration file: /config/registryctl/config.yml
Generated configuration file: /config/db/env
Generated configuration file: /config/jobservice/env
Generated configuration file: /config/jobservice/config.yml
Generated and saved secret to file: /data/secret/keys/secretkey
Successfully called func: create_root_cert
Generated configuration file: /compose_location/docker-compose.yml
Clean up the input dir

1.1.6 执行安装脚本

$ sudo ./install.sh

[Step 0]: checking if docker is installed ...

Note: docker version: 26.1.3

[Step 1]: checking docker-compose is installed ...

Note: Docker Compose version v2.27.0

[Step 2]: loading Harbor images ...

[Step 3]: preparing environment ...

[Step 4]: preparing harbor configs ...
prepare base dir is set to /opt/harbor

[Step 5]: starting Harbor ...
[+] Running 10/10
 ✔ Network harbor_harbor        Created                                                                                      0.1s
 ✔ Container harbor-log         Started                                                                                      0.3s
 ✔ Container redis              Started                                                                                      0.6s
 ✔ Container harbor-db          Started                                                                                      0.7s
 ✔ Container harbor-portal      Started                                                                                      0.7s
 ✔ Container registry           Started                                                                                      0.6s
 ✔ Container registryctl        Started                                                                                      0.7s
 ✔ Container harbor-core        Started                                                                                      0.9s
 ✔ Container nginx              Started                                                                                      1.2s
 ✔ Container harbor-jobservice  Started                                                                                      1.1s
✔ ----Harbor has been installed and started successfully.----

1.1.7 验证运行情况

# docker ps
CONTAINER ID   IMAGE                                COMMAND                  CREATED              STATUS                        PORTS                                                                            NAMES
71c0db683e4a   goharbor/nginx-photon:v2.5.1         "nginx -g 'daemon of…"   About a minute ago   Up About a minute (healthy)   0.0.0.0:80->8080/tcp, :::80->8080/tcp, 0.0.0.0:443->8443/tcp, :::443->8443/tcp   nginx
4e3b53a86f01   goharbor/harbor-jobservice:v2.5.1    "/harbor/entrypoint.…"   About a minute ago   Up About a minute (healthy)                                                                                    harbor-jobservice
df76e1eabbf7   goharbor/harbor-core:v2.5.1          "/harbor/entrypoint.…"   About a minute ago   Up About a minute (healthy)                                                                                    harbor-core
eeb4d224dfc4   goharbor/harbor-portal:v2.5.1        "nginx -g 'daemon of…"   About a minute ago   Up About a minute (healthy)                                                                                    harbor-portal
70e162c38b59   goharbor/redis-photon:v2.5.1         "redis-server /etc/r…"   About a minute ago   Up About a minute (healthy)                                                                                    redis
8bcc0e9b06ec   goharbor/harbor-registryctl:v2.5.1   "/home/harbor/start.…"   About a minute ago   Up About a minute (healthy)                                                                                    registryctl
d88196398df7   goharbor/registry-photon:v2.5.1      "/home/harbor/entryp…"   About a minute ago   Up About a minute (healthy)                                                                                    registry
ed5ba2ba9c82   goharbor/harbor-db:v2.5.1            "/docker-entrypoint.…"   About a minute ago   Up About a minute (healthy)                                                                                    harbor-db
dcb4b57c7542   goharbor/harbor-log:v2.5.1           "/bin/sh -c /usr/loc…"   About a minute ago   Up About a minute (healthy)   127.0.0.1:1514->10514/tcp                                                        harbor-log

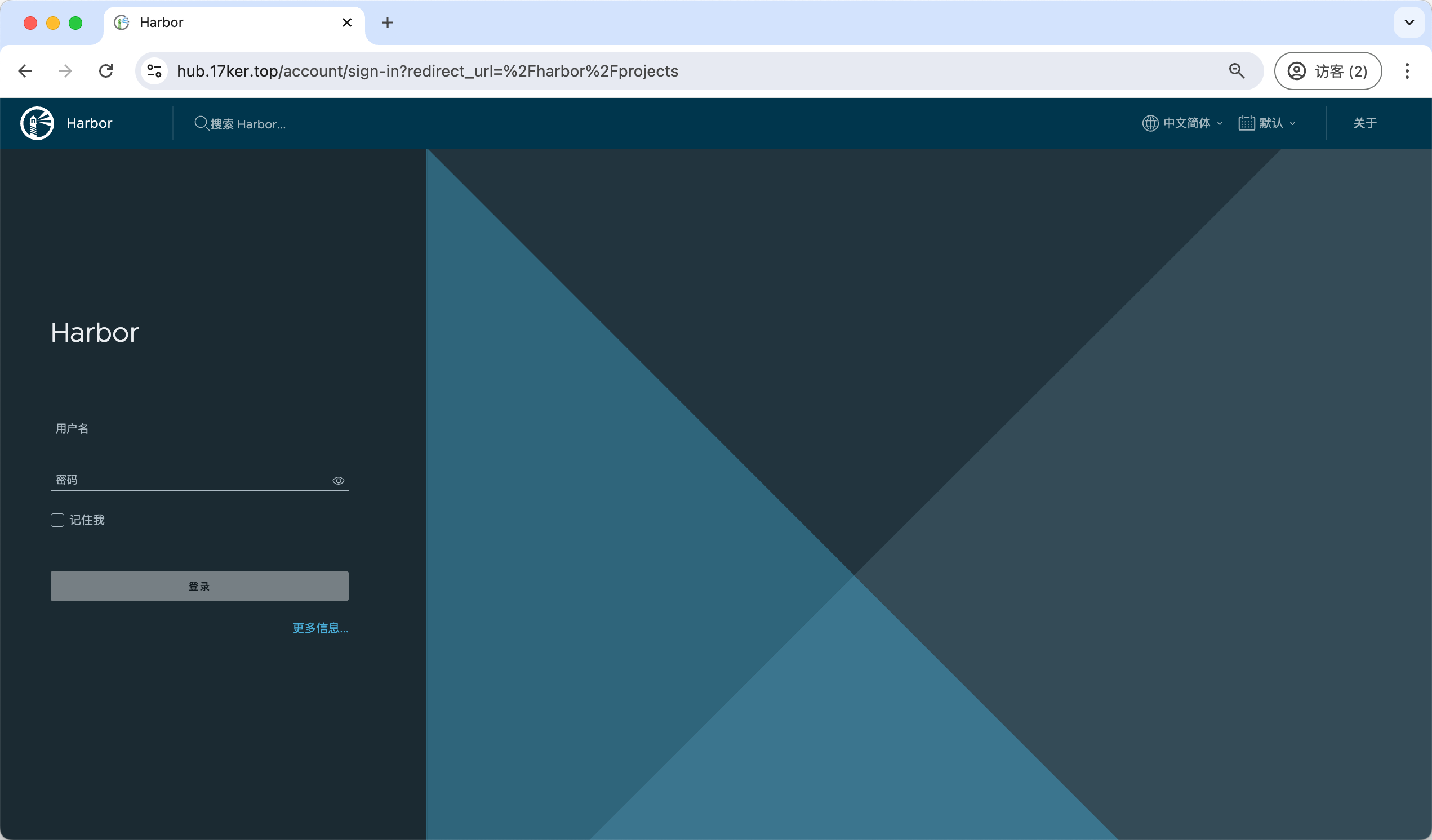

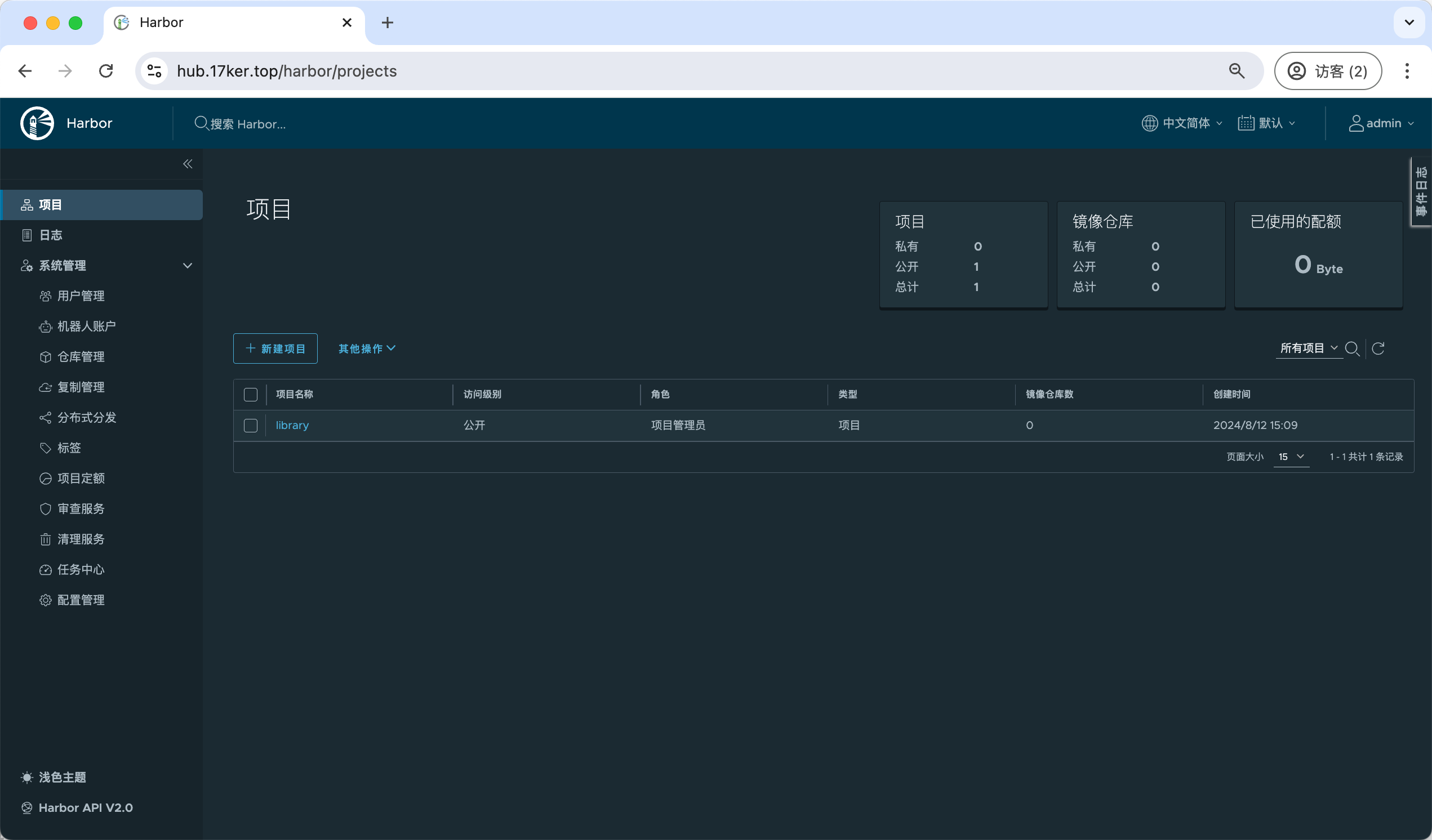

1.1.8 访问harbor UI界面


1.2 在kubernetes集群中部署harbor

由于涉及后面技术内容，例如： pv、pvc、helm等，后期内容做介绍。

二、Kubernetes集群使用harbor仓库

2.1 通过secret使用harbor仓库

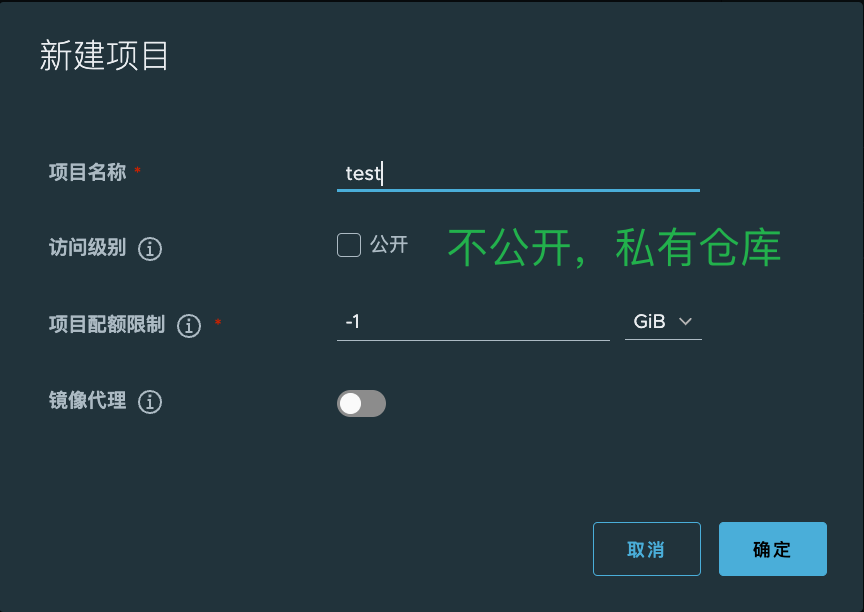

2.1.1 新建一个harbor私有仓库


2.1.2 上传nginx测试镜像到harbor

  • docker-cli 登录 hub.17ker.top
    $ docker login hub.17ker.top
Username: admin
Password:                #输入不显示 Harbor12345
WARNING! Your password will be stored unencrypted in ~/.docker/config.json.
Configure a credential helper to remove this warning. See
https://docs.docker.com/engine/reference/commandline/login/#credentials-store

Login Succeeded
  • 下载nginx镜像，上传到私有仓库
    $ docker pull nginx:1.19.0-alpine
$ docker tag nginx:1.19.0-alpine hub.17ker.top/test/nginx:1.19.0-alpine
$ docker push hub.17ker.top/test/nginx:1.19.0-alpine

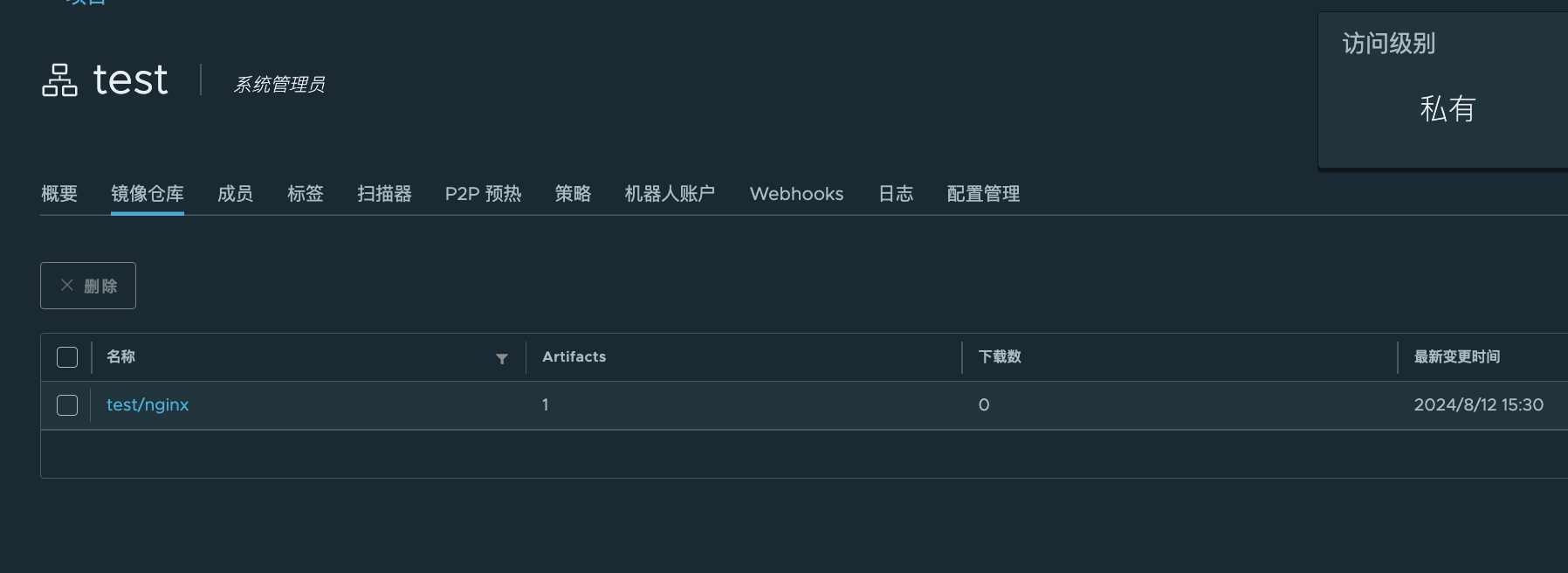

  • 仓库中已经出现对应的镜像

2.1.4 创建docker-registry类型secret

[root@k8s-master1 ~]# kubectl create secret docker-registry harbor-secret --docker-server=hub.17ker.top --docker-username=admin --docker-password=Harbor123456

说明:

  • 类型为docker-registry
  • --docker-server指定harbor仓库的IP
  • --docker-username指定harbor仓库的登录用户名
  • --docker-password指定harbor仓库的登录密码

验证查看

[root@k8s-master1 ~]# kubectl get secret |grep harbor-secret
harbor-secret                        kubernetes.io/dockerconfigjson        1      19s

[root@k8s-master1 ~]# kubectl describe secret harbor-secret
Name:         harbor-secret
Namespace:    default
Labels:       <none>
Annotations:  <none>

Type:  kubernetes.io/dockerconfigjson

Data
====
.dockerconfigjson:  94 bytes

2.1.5 创建pod并使用secret

[root@k8s-master1 ~]# vim pod-harbor.yml
apiVersion: v1
kind: Pod
metadata:
  name: pod-harbor
spec:
  containers:
  - name: c1
    image: 192.168.10.250/test/nginx:v1
  imagePullSecrets:                     # 定义镜像下载使用的secrets
  - name: harbor-secret                    # 与上面的secret一致

[root@k8s-master1 ~]# kubectl apply -f pod-harbor.yml
pod/pod-harbor created

2.1.6 验证pod

[root@k8s-master1 ~]# kubectl describe pod pod-harbor
Events:
  Type    Reason     Age   From               Message
  ----    ------     ----  ----               -------
  Normal  Scheduled  16s   default-scheduler  Successfully assigned default/pod-harbor to k8s-worker1
  Normal  Pulling    15s   kubelet            Pulling image "192.168.10.250/test/nginx:v1"
  Normal  Pulled     14s   kubelet            Successfully pulled image "192.168.10.250/test/nginx:v1" in 630.869309ms
  Normal  Created    14s   kubelet            Created container c1
  Normal  Started    14s   kubelet            Started container c1

可以看到是从192.168.10.250/test/nginx:v1拉取的镜像

2.2 通过serviceaccout使用harbor仓库

2.2.1 设为serviceaccount默认规则

如果每次编写yaml文件都需要添加imagePullSecrets这2行配置，有点麻烦， 有没有在不需要添加这2行配置就可以实现下载harbor仓库里面的镜像呢？答案是有的，可以把secret配置到serviceAccount中即可。

2.2.2 创建serviceaccount及应用过程

  1. 创建serviceaccount
[root@k8s-master1 ~]# vim serviceaccount-harbor-sa.yaml
apiVersion: v1
kind: ServiceAccount
metadata:
  name: harbor-sa
  namespace: default

[root@k8s-master1 ~]# kubectl apply -f serviceaccount-harbor-sa.yaml
serviceaccount/harbor-sa created

[root@k8s-master1 ~]# kubectl get sa |grep harbor-sa
harbor-sa                1         14s

2.修改serviceaccount添加使用harbor-secret

[root@k8s-master1 ~]# kubectl describe serviceaccount harbor-sa
Name:                harbor-sa
Namespace:           default
Labels:              <none>
Annotations:         <none>
Image pull secrets:  <none>
Mountable secrets:   harbor-sa-token-thxwq
Tokens:              harbor-sa-token-thxwq
Events:              <none>

[root@k8s-master1 ~]# kubectl patch serviceaccount harbor-sa -n default  -p '{"imagePullSecrets": [{"name": "harbor-secret"}]}'
serviceaccount/harbor-sa patched

[root@k8s-master1 ~]# kubectl describe serviceaccount harbor-sa
Name:                harbor-sa
Namespace:           default
Labels:              <none>
Annotations:         <none>
Image pull secrets:  harbor-secret
Mountable secrets:   harbor-sa-token-thxwq
Tokens:              harbor-sa-token-thxwq
Events:              <none>

[root@k8s-master1 ~]# kubectl get serviceaccount harbor-sa -o yaml
apiVersion: v1
imagePullSecrets:
- name: harbor-secret                       # 确认,通过patch方式更新了
kind: ServiceAccount
......

3.修改yaml使用serviceAccount

[root@k8s-master1 ~]# vim pod-harbor.yml
apiVersion: v1
kind: Pod
metadata:
  name: pod-harbor
spec:
  serviceAccount: harbor-sa                    # 原来的2句换成使用harbor-sa这个serviceAccount
  containers:
  - name: c1
    image: 192.168.122.18/test/nginx:v1
  1. 删除先前的重新创建pod验证
[root@k8s-master1 ~]# kubectl delete pod pod-harbor
pod "pod-harbor" deleted

[root@k8s-master1 ~]# kubectl apply -f pod-harbor.yml
pod/pod-harbor created

[root@k8s-master1 ~]# kubectl get pods
NAME         READY   STATUS    RESTARTS   AGE
pod-harbor   1/1     Running   0          8s

[root@k8s-master1 ~]# kubectl describe pods pod-harbor
Events:
  Type    Reason     Age   From               Message
  ----    ------     ----  ----               -------
  Normal  Scheduled  13s   default-scheduler  Successfully assigned default/pod-harbor to k8s-worker2
  Normal  Pulling    13s   kubelet            Pulling image "192.168.10.250/test/nginx:v1"
  Normal  Pulled     12s   kubelet            Successfully pulled image "192.168.10.250/test/nginx:v1" in 731.788686ms
  Normal  Created    12s   kubelet            Created container c1
  Normal  Started    12s   kubelet            Started container c1

补充: serviceAccount可以实现不同namespace下载镜像使用访问harbor账号的不同。
